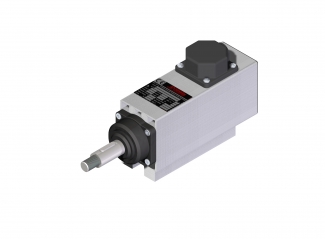

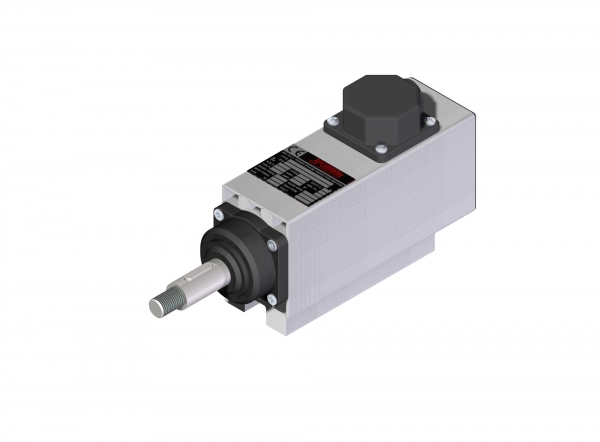

• C55 Series

    General data

    C55 SERIES motors are designed to develop high power with a limited overall dimensions. These characteristics, combined with the high rotational speed, making them ideal for use on machines for working wood, aluminum and PVC. C55 SERIES: for to 12,000 rpm when the load is mainly radial. Also available in twin shaft.

  • Technical characteristics

    • Stator:

      A

    • Rotor:

      A

    • Frame:

      A

    • Ventilation:

      A

    • Protection:

      A

    • Balancing:

      A

  • Tipo Potenza Tensione Hz rpm A Peso kg
    3140-A-3822-200 0.22 220/380 200 12000 1.6/0.9 2.8
    3140-B-3820-200 0.37 220/380 200 12000 2.1/1.2 3.2
    3140-C-3822-200 0.55 220/380 200 12000 2.7/1.55 3.5
    3140-D-3822-200 0.75 220/380 200 12000 3.1/1.8 3.9
    3140-A-3822-300 0.33 220/380 300 18000 2.1/1.2 2.8
    3140-B-3822/300 0.55 220/380 300 18000 3.0/1.7 3.2
    3140-C-3822-300 0.73 220/380 300 18000 3.6/2.1 3.5
